Plot harmbounds and the observed events

Plot harmbounds and the observed events

harmboundPlot(
  harmbound,
  observed = NULL,
  colourbound = c("blue", "red"),
  fill_alpha = 0.5,
  colourobserved = "black",
  H0line = TRUE
)

Arguments

harmbound

harmbounds objects as generated using the getHarmBound function

observed

optional observed number of events, as a vector with the sequential groups in which an event occured (0 for control and 1 for experimental)

colourbound

vector with two colours for the bounds, in and out, default is blue and red

fill_alpha

opacity of the colours for the bounds

colourobserved

colour for the line with the observed events

H0line

logical, whether a line to indicate the expectations should be added.

Value

plot with the bounds and optionally the observed number of events

Examples

hb<-getHarmBound(nevents=seq(10,100,by=10),alpha_test=0.025,pH0=0.5)

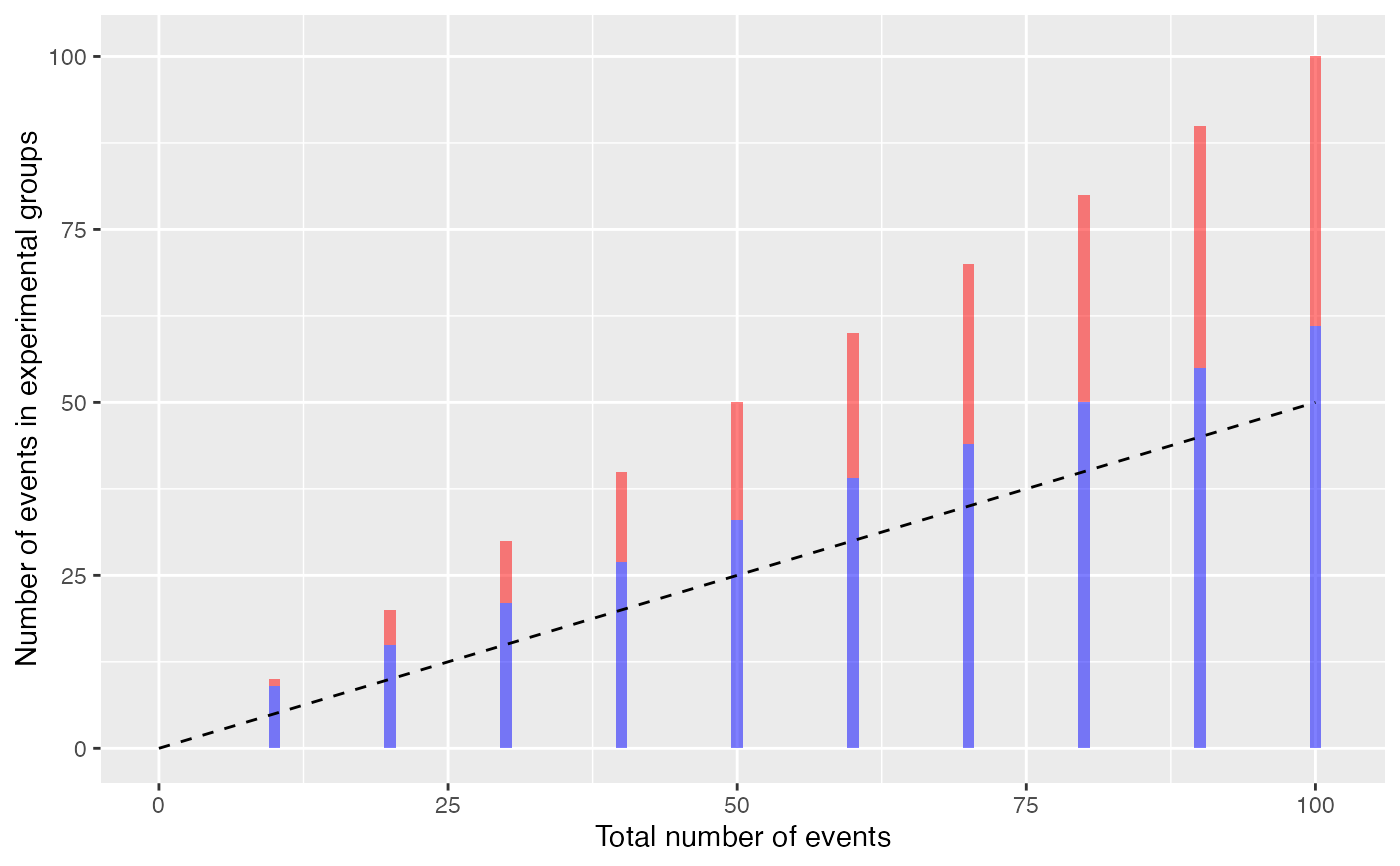

harmboundPlot(hb)

set.seed(123)
eventgroups<-rbinom(n=100,size=1,prob=0.5)

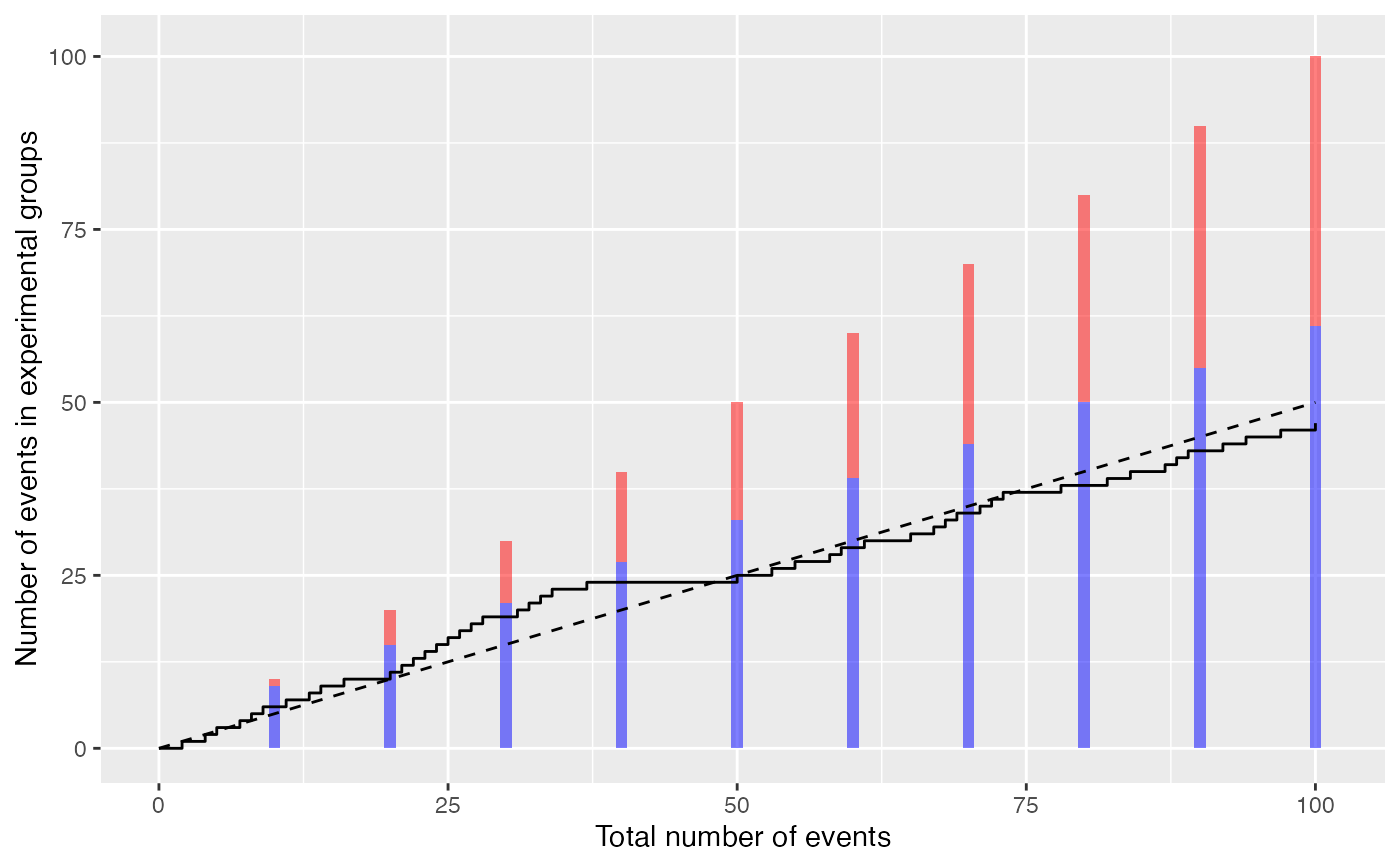

harmboundPlot(hb,observed=eventgroups)
